We are Dealer, Supplier, Stockiest of Multi Functional Rework Stations and our setup is situated in Pune, Maharashtra, India.

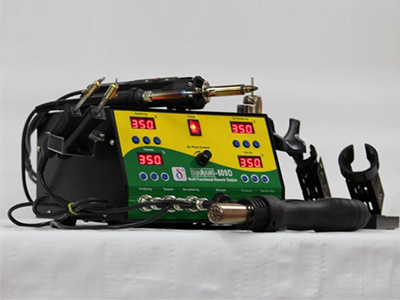

Multi Functional Rework Station-609D


  • Input 230 Vac +/-10 %
  • soldering iron 24 VAC / 60 W
  • Hot air gun max power rating 250W
  • Air blower 18 VDc brush less fan
  • Air flow 24 LPM
  • Tip to ground resistance under 2 ohms
  • Tip to ground potential under 2 mv
  • Temperature range 180-4800C For soldering
  • Temperature range 200-4500C For Hot air
  • Station weight approx 4.0 Kg
  • System includes: control unit, soldering iron, hot air gun, single hole nozzles 2 Nos, pick up tool


  • Micro processor based PID control Digital Soldering Station
  • Digital display for Temperature Reading.
  • Japanese ceramic heater with quick heat recovery
  • Wide Range of Inter changeble soldering Bits & Nozzles
  • Long life soldering iron bit with oxygen free copper & 300 micron iron plating covered with nickel & chrome
  • Micro control system,digital display,easy to work with
  • Pulses heating method, protect heating element, hot air blower from over heating,thus prolongs the machine's service life.
  • Automatic Cool off system, protect the heater from overheating.
  • Sleek & Light weight soldering iron & Hot air handle
