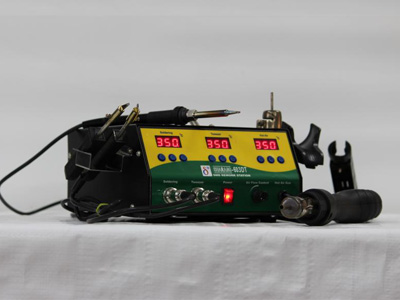

SMD Rework Station - 603DT

Specification

  • Input 230Vac +/-10 %
  • Soldering Iron 24V AC/60W
  • Hot Air Gun Max Power Rating 250W
  • Air Blower 18 VDc Brush Less Fan
  • Air Flow 24 LPM
  • Tip To Ground Resistance Under 2 Ohms
  • Tip To Ground Potential Under 2mv
  • Temperature Range 180-4800C For Soldering
  • Temperature Range 200-4500C For Hot Air
  • Station Weight Approx 4.0 Kg
  • System Includes: Control Unit, Soldering Iron, Hot Air Gun, Single Hole Nozzles 2 Nos, Pick Up Tool.


Features

  • Micro Processor Based Pid Control Digital SMD Rework Station
  • Digital Display For Temperature Reading
  • Japanese Ceramic Heater With Quick Heat Recovery
  • Wide Range Of Inter Changeable Soldering Bits & Nozzles
  • Long Life Soldering Iron Bit With Oxygen Free Copper & 300 Micron Iron Plating Covered With Nickel & Chrome
  • Micro Control System, Digital Display, Easy To Work With
  • Pulses Heating Method, Protect Heating Element, Hot Air Blower From Over Heating, Thus Prolongs The Machine’s Service Life.
  • Automatic Cool Off System, Protect The Heater Form Overheating.
  • Sleek & Light Weight Soldering Iron & Hot Air Handle.
